China Manufacture Cemented Carbide Thread Nozzle For Bits Mining And Oil Field Drilling

  • 1
  • 2
  • 3

Brand Name : Kedel

Model Number : PZ-YH-14.3

Certification : ISO90001:2015

Place of Origin : Sichuan China

MOQ : 10 pieces

Price : $10.00 - $32.00 / Piece

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 5000 pieces per month

Delivery Time : 20-25 days

Packaging Details : plastic and carton box

Type : Nozzle

Machine Type : Drilling Tool Accessories

Particle : Tungsten carbide

Head Hardness : 90-92 HRA

Usage : Oil Field Drilling Bit parts

Sample : Available

Trade Mark : KEDEL

Density : 14.5-15.0 g/cm3

Idustry Material : Tungsten Carbide WC+Co

Compressive Strength : ≥ 3200 MPa

Surface Treat : Shaping Mode

Surface Finish : Ground or Polished

Total Length : 26.30

Grade : YG8/YG15/YG6X/YG6/YG20

Single Gross Weight : 0.160 kg

Contact Now

China manufacture cemented carbide thread nozzle for bits mining and oil field drilling

The cemented carbide threaded nozzle is mainly used on PDC bits for drilling and mining, and is made of all hard aggregate materials. It is characterized by high wear resistance, high strength and corrosion resistance. Kedal Tools can produce various types of cemented carbide threaded nozzles, that is, there are standard products from world-famous drilling and production companies, and can accept ODM and OEM customized services.

Product introduction:

The cemented carbide threaded nozzle is made of 100% tungsten carbide powder by pressing and sintering. It has strong wear resistance, corrosion resistance and high hardness. The threads are generally of metric and inch systems, which are used to link the nozzle and drill base. Nozzle types are generally divided into four types, cross groove type, inner hexagon type, outer hexagon type and quincunx type. We can customize and produce different types of nozzle heads according to different customer needs.

Types of the carbide nozzles

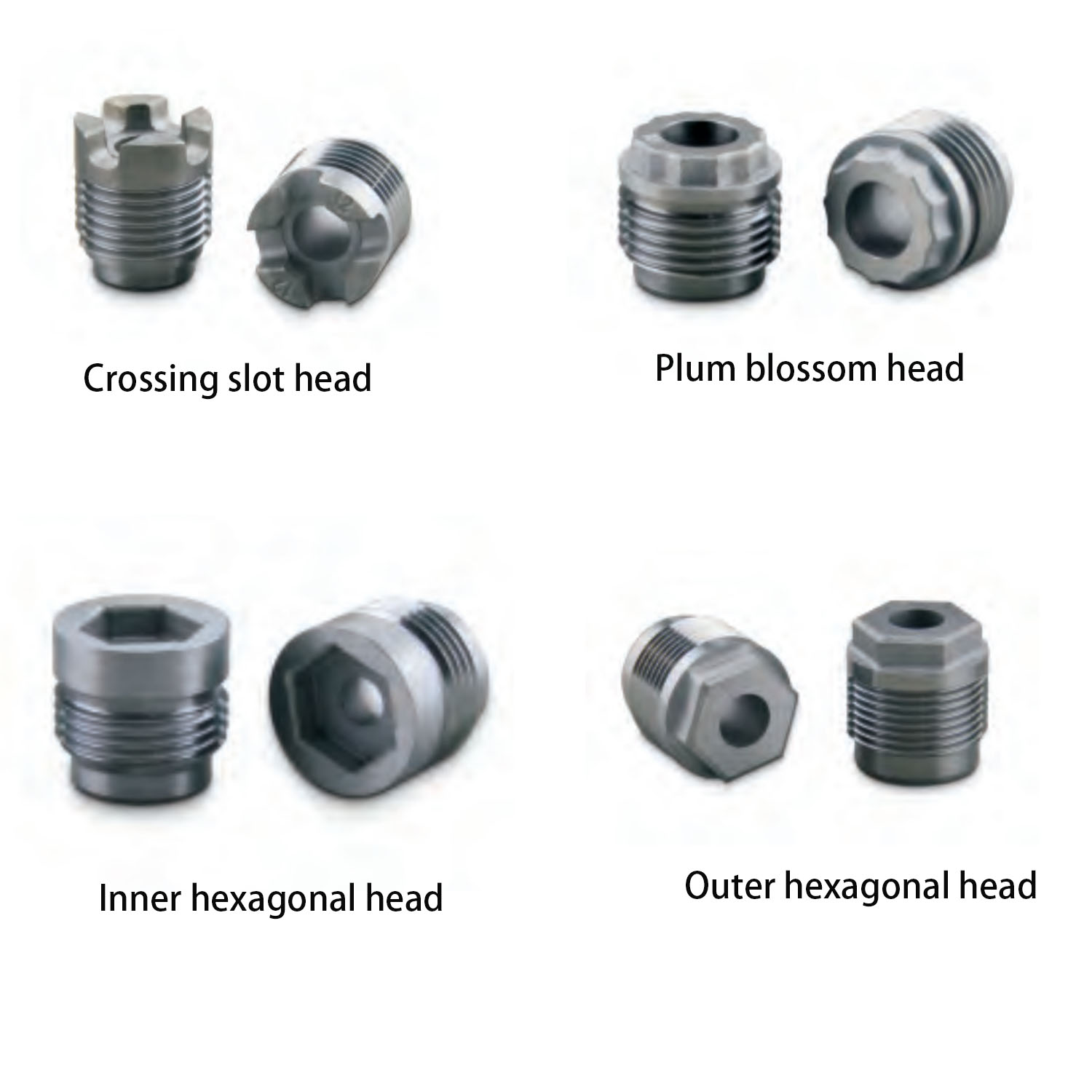

There are two main types of carbide nozzles for the drill bits. One is with thread, and the other is without thread. Carbide nozzles without thread are mainly used on the roller bit, carbide nozzles with thread are applied mostly on the PDC drill bit. According to different handling tool wrench, there are 6 types of threaded nozzles for PDC bits:

1. Cross groove thread nozzles

2. Plum blossom type thread nozzles

3. Outer hexagonal thread nozzles

4. Internal hexagonal thread nozzles

5. Y type (3 slot/grooves) thread nozzles

6. gear wheel drill bit nozzles and press fracturing nozzles.

China Manufacture Cemented Carbide Thread Nozzle For Bits Mining And Oil Field Drilling

Material Grade:

Grade Co(%) Density(g/cm3 ) Hardness(HRA) TRS(NN/mm²)
YG6 5.5-6.5 14.90 90.50 2500
YG8 7.5-8.5 14.75 90.00 3200
YG9 8.5-9.5 14.60 89.00 3200
YG9C 8.5-9.5 14.60 88.00 3200
YG10 9.5-10.5 14.50 88.50 3200
YG11 10.5-11.5 14.35 89.00 3200
YG11C 10.5-11.5 14.35 87.50 3000
YG13C 12.7-13.4 14.20 87.00 3500
YG15 14.7-15.3 14.10 87.50 3200
